Egis Single XD - NMEA 2000 - ACR w/Knobs - 4 Position DT [9811-4300]
MSRP: $201.20
Our Price: $151.00
Our Price: $151.00
$151.00
What's this?
What's this?
In stock
only 7 left
MPN: 9811-4300
SKU
CWR-108558

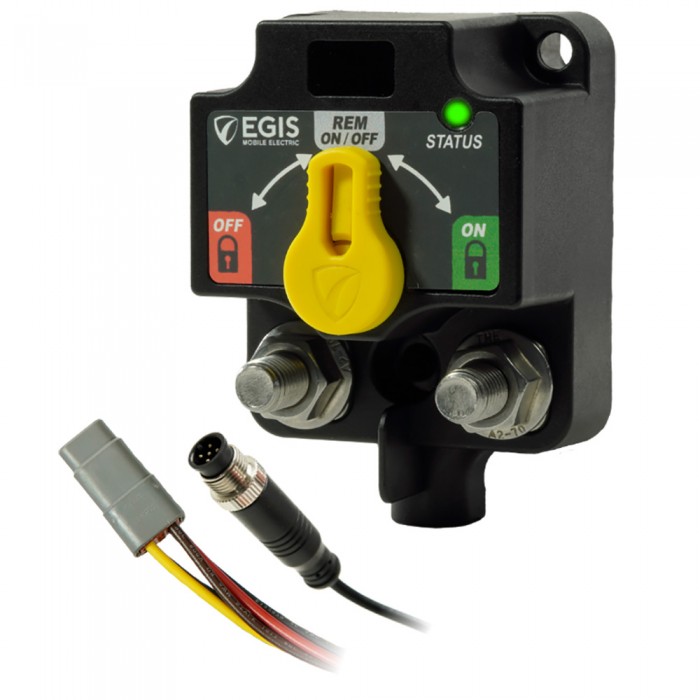

Single XD - NMEA 2000 - ACR with Knobs - 4 Position DT
Features:
- Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
- Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
- Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
- 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Applications:
- Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage.
- Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
- 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
- Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
- Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Type: Electric
- Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs
- UPC: 850067590217
UPC: 850067590217
